BRINE FILTRATION SERVICES

Binarina is one of the leading service providers in the brine filtration business. We offer outstanding Brine Filtration Services to our esteemed clients. In addition to this, we are one of the leading brine purification service providers in US and Nigeria. Howsoever, we do not compromise with our quality standards under any circumstances.

Filtration often goes hand in hand with clear bring fluids (CBFs) and Binarina has the expertise, equipment, and engineering and operations staff to handle all of our customers’ filtration needs. The added benefit with Binarina is that we have an in-depth understanding of the nature and characteristics of the fluids being filtered.

The company has highly trained man power to operate the units. Every filtration engineer of the company is trained for brine preparation, turbidity check, trouble shooting of the units including repair of the valves which ensure uninterrupted unit operation at remote locations. It is mandatory that all the engineers have valid license for HUET, Sea Survival, Fire Fighting and FirstAid.

Binarina also provides best quality of polypropylene pleated cartridges and bags.

The Brines Can Be Filtered To 1 Micron Using

  • DE Filters: For coarse filtration of heavy brines
  • Bag Filters: For coarse filtration of low-density brine
  • Cartridge Filters: For polishing to required NTU

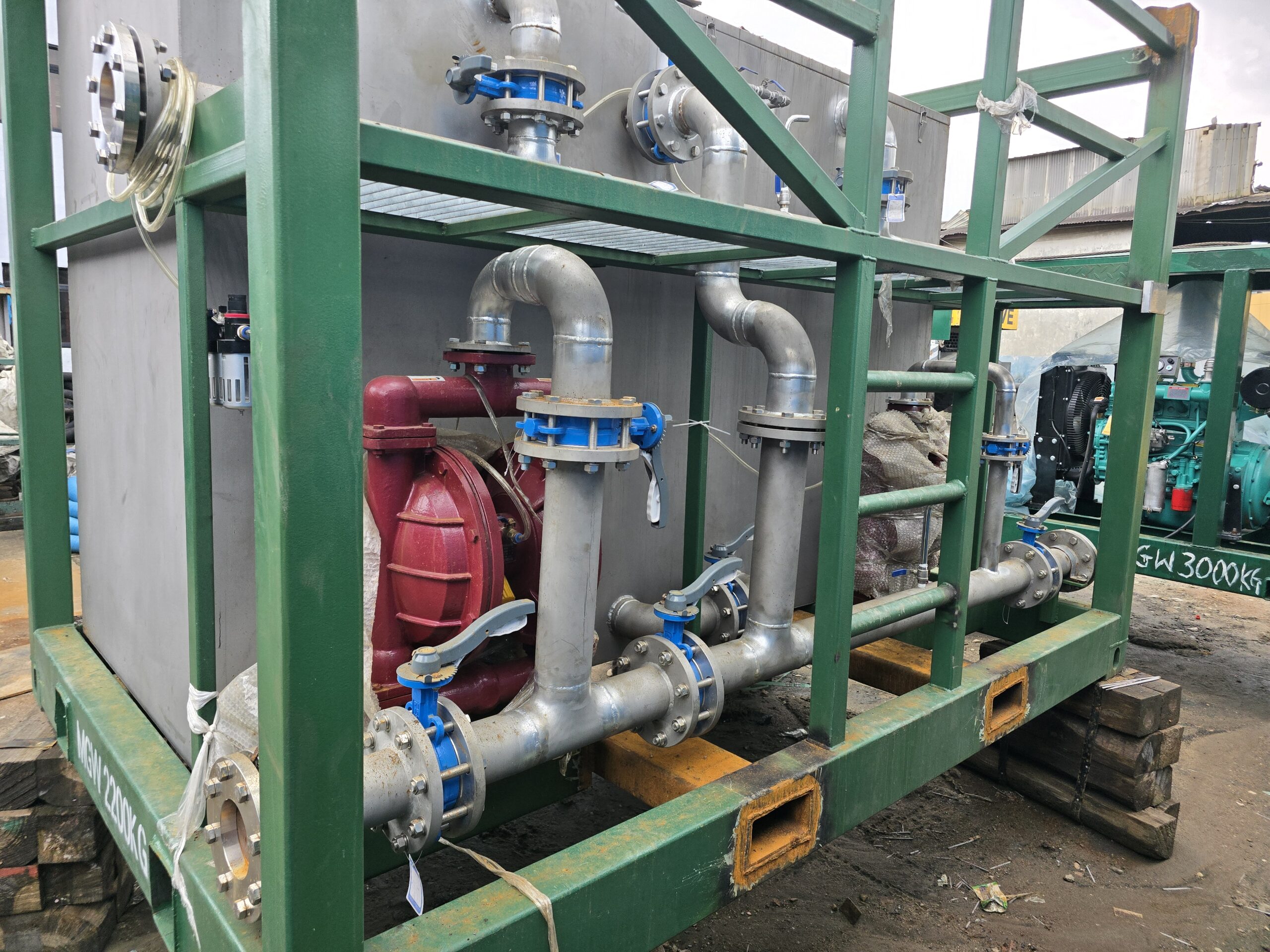

BINARINA DUAL VESSEL SKID is used for brine filtration for purification down up to ONE MICRON. For brine with heavier contamination, the skid can be used in conjunction with bag filters, which carry out the upstream coarse filtration.

Filtration media is polypropylene pleated cartridge with large filtration area and high dirt holding capacity.

Series/parallel piping manifold in the skid facilitates pre and final filtration in single pass.

  • 304/316 stainless steel construction
  • 10 to 18 barrels/mm/vessel flow capacity
  • 52 pleated PPcartridges per vessel
  • 78 square meters (840 sq. ft) Filtration area per vessel
  • 4” Inlet/Outlet
  • Series & parallel piping work
  • Suitable for 10 bags operation
  • 2.75mts x 1.3mts x 2.35mts Height x 1,900kgs
